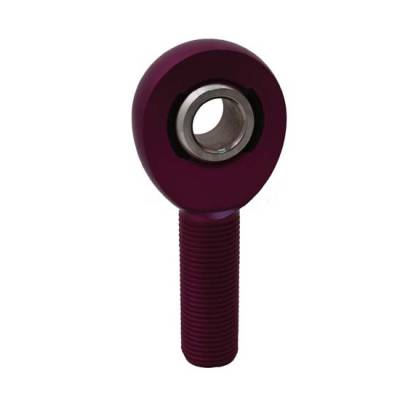

QA1 AML8-10PU Purple AM Series Aluminum Male Rod End LH 1/2" x 5/8"-18

QA1 Precision Products

AM Series Aluminum Male Rod End

QA1's AM Aluminum Series rod ends are male rod ends that are designed specifically for performance applications where weight is a concern. With a Nylon/PTFE injection molded race, these rod ends are completely self-sealing and self-lubricating, keeping dirt and debris out. Over 10% lighter than traditional three-piece aluminum rod ends, the AM Series rod ends are the most wear-resistant aluminum design available.

BALL

52100 Bearing Steel

Heat Treated

Hard Chrome Plated

Precision Ground

RACE

Nylon/PTFE

Self-Lubricating

Self-Sealing

BODY

Aircraft Aluminum

Color Anodized Red as Standard

EXCLUSIVE FEATURES

Metal to Metal Support for Heavy Shock Loads

Increased Cross-Sectional Thickness for Greater Tensile Strength

PN - AML8-10PU
Name - AM Endura Series Rod End
Color - Purple
Thread Type - LH Thread
B - 0.5
W - 0.625
T - 0.5
A - 2.625
D - 1.5
Ball Dia. Ref. - 0.937
C - 1.625
Thread UNF - 3A - 5/8-18
Misalign Angle At Degrees - 10
Ult. Redial Static Load Lbs. - 15000
Aprox. Bearing Weight - 0.18
