SBC CHEVY High Rise Aluminum Intake Manifold 350 400 Single Plane IMCA Modified

(0) Reviews: Write first review

SKU: ARC PC2031

Was: $159.99

Sale: $149.95

Save: 6%

Save: $10.04

Description
Details
Shipping
Reviews

Description

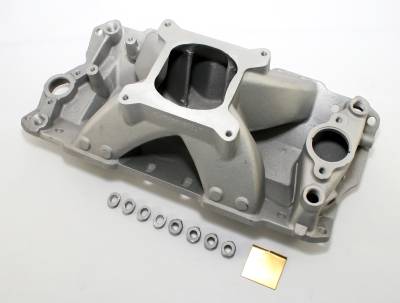

Small Block Chevy High Rise Aluminum Intake

3000-7500+ RPM

This is a high rise single plane intake for small block Chevy. Big power for mid to upper RPM ranges! Ideal for high performance and race applications - big savings when you dont need to pay for the name!

These intakes are produced from steel molds to reduce core shift, have all the major features found on the expensive ones such as 4 corner water outlets and nitrous bosses.e 52031

Intake works with 283-400 small blocks up to 1995. Includes special adapter bushings for the middle holes on the 87 to 95 heads. Will not fit the newer Vortec heads. For use with square bore style carbs. Provides standard bosses and tapped holes for street accessories such as A/C and alternator brackets. No provision for manual choke or exhaust crossover. Not EGR equipped.

Manifold Specifications:

Part Number	RPM Range	Intake Port Dimensions	Manifold Height
PC2031	3000 - 7500+	1.80" x 1.11"⁽¹⁾	6.06"

NOTE (1) - port is intentionally left small to allow for porting/gasket matching.

Features:

360° single plane high rise design for outstanding power from 3000 to 7500+ RPM
Cast-in bosses on intake runners, can be drilled and tapped for use with nitrous
Square bore carb bolt pattern for the Holley 4150/4160 style carburetor
Ideal port position - allows custom porting for maximum power
Dual distributor hold-down provisions for extra protection against distributor rotation
Unique removeable water flow divider to eliminate the thermostat in racing applications
Four corner water outlets
Accepts late-model water neck, air-conditioning, alternator, and HEI brackets
Special adapter bushings allows manifold to fit 1987 to 1995 engines
