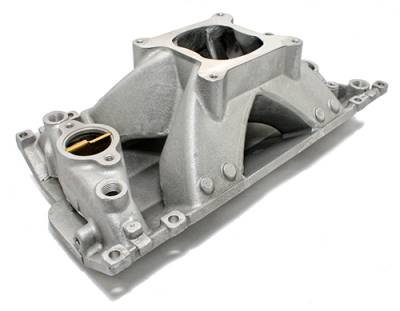

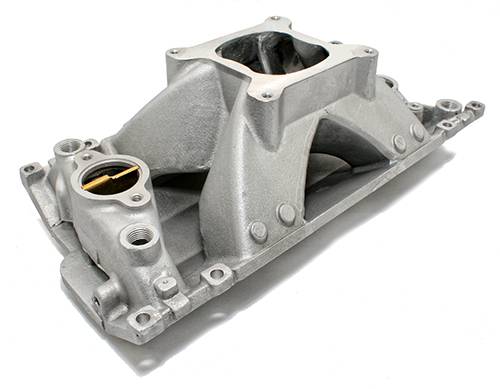

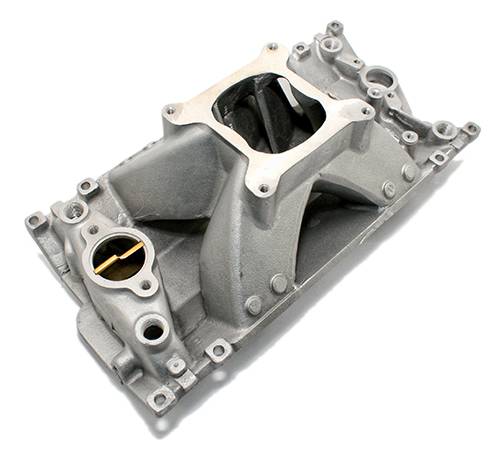

SBC CHEVY High Rise Aluminum Vortec Single Plane Intake Manifold 350

Small Block Chevy High Rise Aluminum Intake

Vortec Heads, 3000-7500+ RPM

This is a new high rise single plane intake for small block Chevys with Vortec heads. Big power for mid to upper RPM ranges! Ideal for high performance and race applications - big savings when you dont need to pay for the name! These intakes are produced from steel molds to reduce core shift, have all the major features found on the expensive ones such as 4 corner water outlets and nitrous bosses, and the best part - the price! Intake works with small blocks with 96+ Vortec heads. For use with square bore style carbs. Provides standard bosses and tapped holes for street accessories such as A/C and alternator brackets. No provision for manual choke or exhaust crossover. Not EGR equipped.

Features:

• 360° single plane high rise design for outstanding power from 3000 to 7500+ RPM
• Cast-in bosses on intake runners, can be drilled and tapped for use with nitrous
• Square bore carb bolt pattern for the Holley 4150/4160 style carburetor
• Ideal port position - allows custom porting for maximum power
• Dual distributor hold-down provisions for extra protection against distributor rotation
• Unique removeable water flow divider to eliminate the thermostat in racing applications
• Four corner water outlets
• Accepts late-model water neck, air-conditioning, alternator, and HEI brackets

Manifold Specifications:
