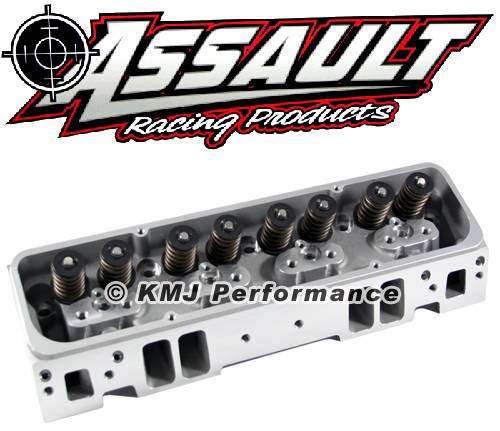

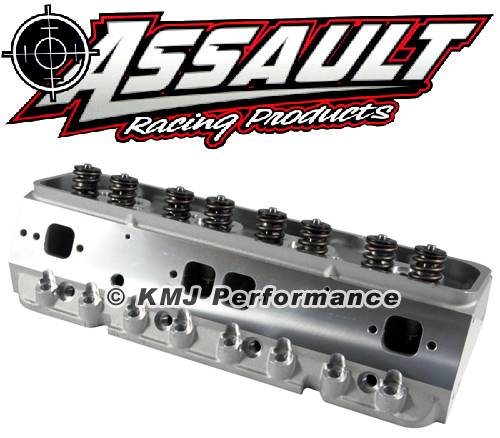

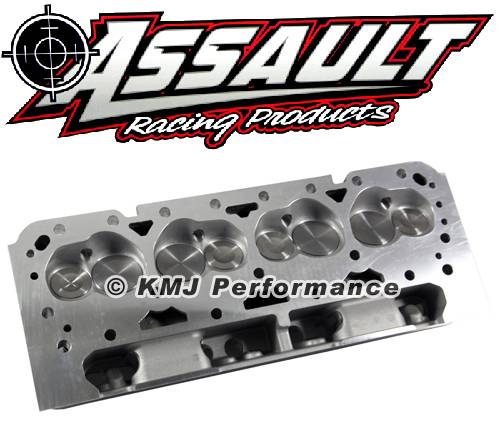

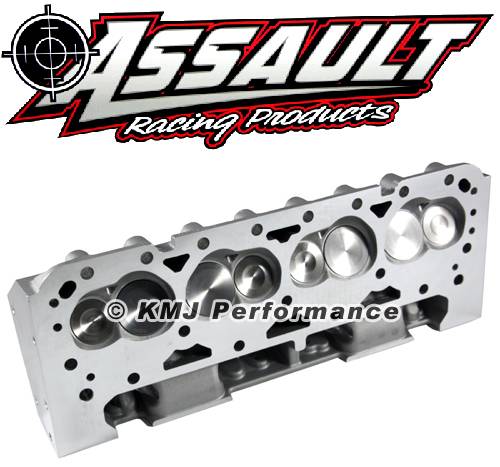

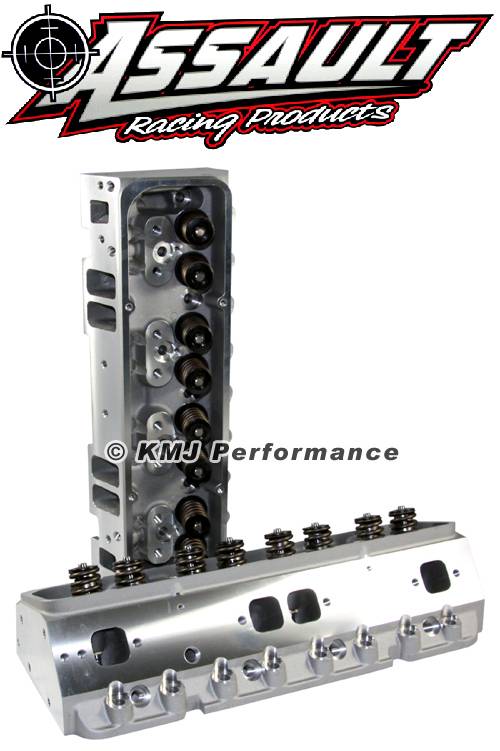

Complete PAIR of SBC Chevy Aluminum Cylinder Heads 205cc/64cc Angle Plug .650 Max Lift Springs 7/16" Studs and Flat Guide Plates

Complete PAIR of SBC Chevy 350 Aluminum Cylinder Heads

205cc Intake Port, 64cc Chamber, 2.02/1.6 Valve, Angle Plug

These come with flat guide plates and 7/16" screw in studs!

(1 PAIR/ 2 HEADS)

New pair of KMJ Performance Racing Heads. These heads are complete and ready to bolt on.

• Hardened exhaust seats for unleaded fuel compatibility
• Bronze valve guides
• Manufactured with aircraft quality high grade aluminum alloy
• Multi-angle seat design for improved flow at low lifts
• Advanced port design for improved flow at all lifts
• Advanced combustion chamber design allows superb flame travel and burn
• Additional push rod clearance machined along outside port walls
• Can use either early or late (Vortec) intakes
• Can use either perimeter bolt pattern or center bolt valve covers
• Threaded accessory holes in ends of heads
• Retains stock 23 degree angle and intake/exhaust bolt locations
• Thick deck to resist warping and allow for additional milling if desired
• Does not require offset rocker arms

These heads will work for all small blocks including 400s (no steam holes). Heads are drilled for both the earlier style intake bolt pattern (pre '87) that had all bolts going in at an angle and the newer Vortec style that has 4 on each side going straight down in. Will not work with stock intake manifolds, must use an aftermarket raised runner intake.

All assembled heads are assembled right here in IOWA in our machine shop and checked by our machinists before leaving! If you have a problem you can call us.

Assembly features:

• 1.45" diameter dual valve springs, good to .600" lift (flat tappet cams)
• Stainless steel 1 piece swirl polished valves
• Chromoly steel retainers
• Hardened steel valve locks
• Flat Guide Plates
• 7/16" Shouldered Screw-In Studs
