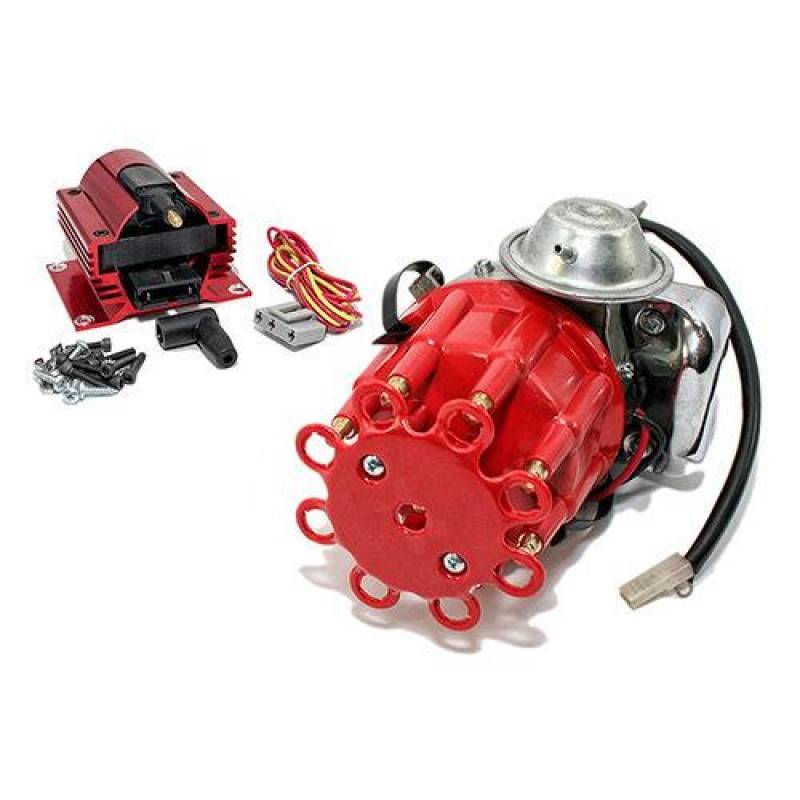

318 340 360 Small Block Dodge Plymouth Electronic Distributor w/High Output Coil

 "Ready to Run" Electronic DistributorSmall Block Mopar Engineswith High Output Red Anodized Super Coil

New electronic distributor & coil kit for Dodge, Chrysler, and Plymouth small block ('64+ "LA") and earlier Polysphere ('55-'66 "A") V8 engines. Applications included: 273, 318, 325 Red Ram, 340, and 360 V8's.This is a NEW distributor, not a second or blem. Pefect for upgrading non computer controlled engines. This is a simple 2 wire hook up - add 12V power plus an external coil, and you're "ready to run".

Distributor Features:

• Oversized steel shaft for high strength
• Top mounted sealed ball bearing
• Magnetic pickup (never requires adjustment)
• Small base and cap (3 3/4") for space savings
• Easy to adjust mechanical advance
• Vacuum advance for improved street fuel economy
• Precision machined reluctor
• Self contained high performance module

 Coil Features

• Primary Resistance: 0.35 Ohm
• Secondary Resistance: 8.5K Ohm
• Turn Ratio: 100:1
• Peak Current: 260mA
• Max Voltage: 50,000V
• Anodized Red Finish

A high performance HEI type ignition module is contained on the distributor itself that produces increased performance, easily outperforming stock and many other aftermarket ignitions. Supplied with full system voltage, the increased output of the internal ignition will smooth out the engines idle, improve starting, and provides a much higher RPM range.  Includes adjustable mechanical advance which allows you to tailor the ignition curve along with a vacuum advance for improved fuel economy when used on street applications.  This is perfect for upgrading from outdated points style distributors, factory and Mopar ECUs - including the dreaded "Lean Burn", or when space requirements limit using the bulky GM style HEI units. You will do away with the ECU control box, the ballast resistor, and those tangle of wires in the normal Mopar setup.Note that these will require spark plug wires (or a replacement HEI style terminal and boot kit) that accepts the male terminals on the distributor cap end when switching from an application with the typical socket type distributor caps.  We've included our high performance e-core coil as well!
