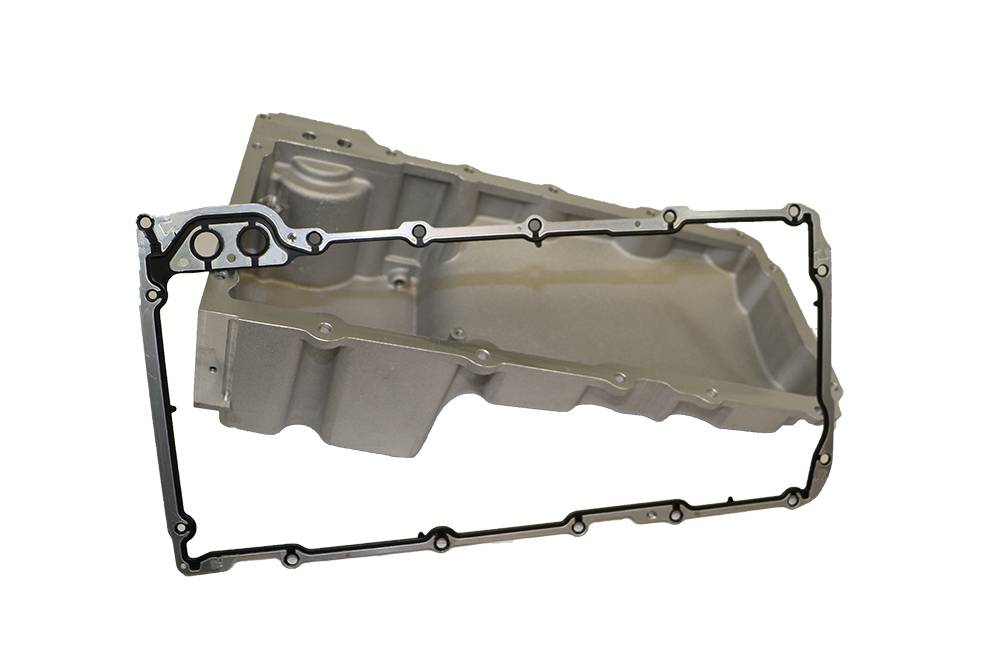

LS Conversion Swap Oil Pan Low Profile Retrofit Kit Satin LS1 LS2 LS3 5.3 6.0

Low Profile LS Swap/Conversion Oil Pan
Added Front Clearance
Satin Finish

Fits Gen III/IV Blocks
LS1 LS2 LS3 LS6 L92 LQ4 LQ9 LM7 LR4
4.8 5.3 5.7 6.0 6.2

These Oil pans fit many GM rear-wheel drive applications that originally had either small or big block Chevrolet engines with a rear sump pan.  These will work with any wet-sump oiling system GEN III/IV engine.  These pans have a total of a 6.0 quart capacity, including filter.  This pan is designed to use the LS3 style dipstick and tube, part numbers 12669528 and 12625031.  This pan will work with up to a 4.25 inch stroke crank.  Will work with the following oil filters or equivalents: AC Delco® PF48 or PF48E, Mobile M1-113, Wix 57060, K&N HP-1017, NAPA 7060.  Engine position may need minor adjustment for clearance in some applications.


Kit includes:

• Oil Pan
• Pickup Tube
• Oil Pan Gasket
• Sump Baffle
• Mounting Hardware
• Oil Cooler/Passage Cover
• Drain Plug
• Oil Filter Adapter
